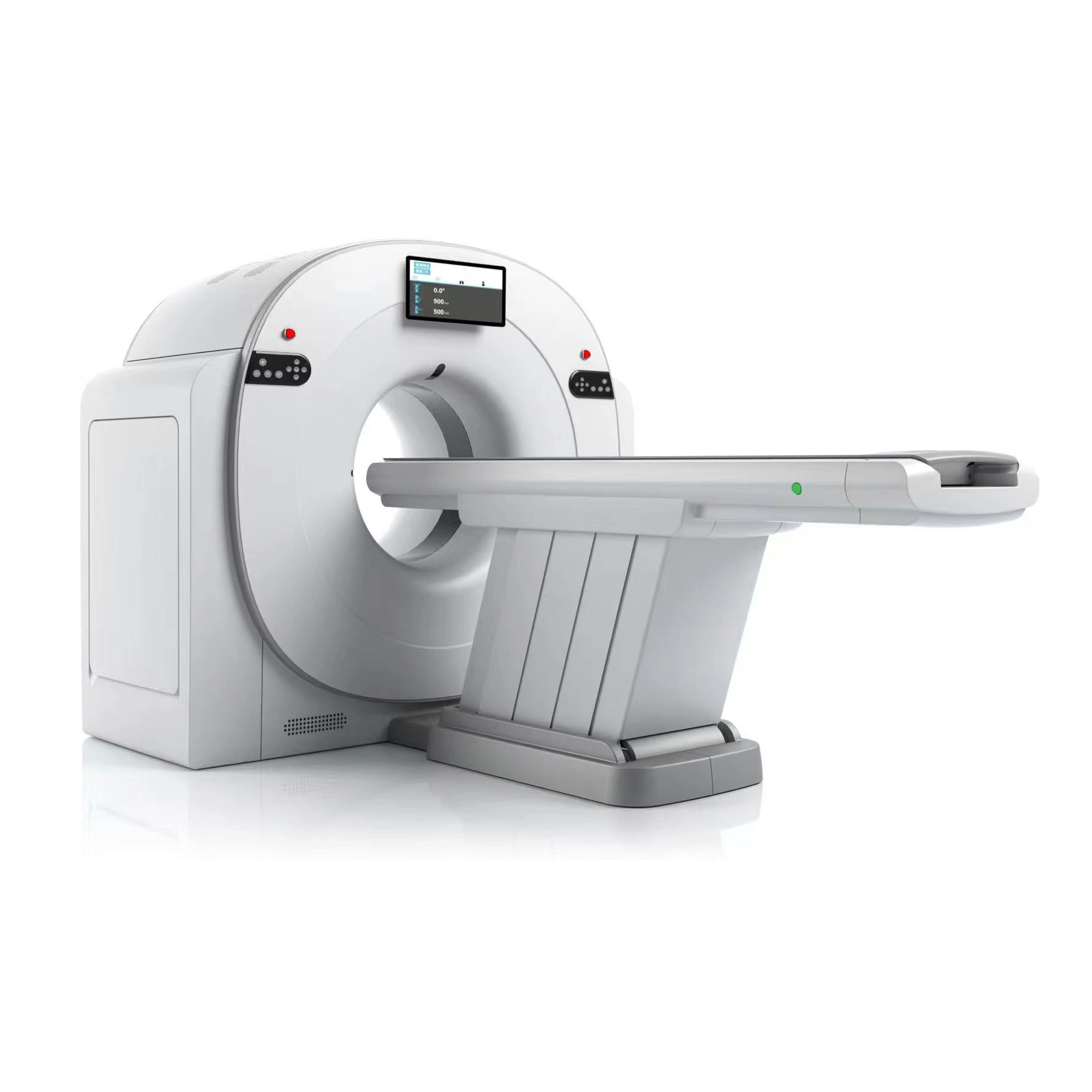

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 1

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 2

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 3

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 4

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 5

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 6

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis

Brand Name:

INNORKOM

Model Number:

INK-34-32-CT-OCE

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-3(sets):15(days),>3(sets):To be negotiated(days)

Shipping:

Support Sea freight

Inquiry

Write a Review

Warranty

1 Year

Power Source

Electric

Instrument classification

Class II

After-sale Service

Online Technical Support

Couch width

≥420mm

Maximum continuous scan duration

≥100sec

Tube mA range

10mA-350mA

Continuous output of HV generator

34kW

Heat dissipation rate

>8.0kW(735kHU/min)

Shortest rotation time

0.75s/360°

Field of View Extension

Corresponding600/650/700 mm

Scan FOV

Optional 400/450/500 mm

Product name

32 Slice CT System

Place of Origin

Guangdong, China

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 7

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 8

Product Description

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 9

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 10

Focus tracing

Real-Time Focal Position Correction for CT, Delivering Superior Image Quality, Lower Radiation Exposure, and Reliable Emergency
Imaging Without Tube Preheating

Whole-Body CT Scanning Capability

It can scan abdomen, shoulder joint, skull, chest, and so on.

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 11

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 12

Iterative Reconstruction

Employs advanced iterative reconstruction techniques, enhances image quality.

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 13

32 Slice Electric Ct Scanner Low Dose High Resolution Medical Imaging System For Hospital Diagnosis 14

Product Specifications

Gantry
Aperture	700mm土10mm
Scan FOV	Optional 400/450/500 mm
Field of View Extension	Corresponding600/650/700 mm
Mechanical tilt capability	±30°
Tilt positioning accuracy	±0.5°
SDD	950±2mm
SID	570±2mm
Rotation mode	Clockwise
Gantry type	Low voltage
Shortest rotation time	0.75s/360°
Orientation system	3D laser orientation
Safety protection	Tilt interference by software and hardware
Temperature detection	Provide temperature detection interface to prevent hot air hazards
Tube
Tube anode heat capacity	3.5MHU
Continuous anode input power	>34kW@LFS/28kW@SFS
Heat dissipation rate	>8.0kW(735 kHU/min)
Tube focus	Small focus 0.7mm0.8mm Large focus 1.2mm1.4mm
High voltage generator
Continuous output of HV generator	34kW
Tube kV selections	60kV、70kV、80kV、100kV、120kV、140kV
Tube mA range	10mA~350mA
Maximum continuous scan duration	≥100sec
Detector
Detector type	Solid-state GOS ceramic
Detector Z-axle arrangement	24 non equidistant rows, effectively reduce signal loss
Width of Z-axle detector	19.2mm@lS0 center
Detector columns of channels per row	624/720/816
Numbers of detector columns	14976/17280/19584
Minimum slice thickness of scan	0.6mm
Acquisition mode	16x0.6mm, 16x1.2mm
Table
Maximum patient weight	200kg
Maximum vertical-movable range	400mm
Maximum horizontal-movable range	1600mm
Table horizontal-position repeatability	0.25mm
Table horizontal-scannable range	1500mm
Couch width	≥420mm
Repeat positioning accuracy	≤ 1 mm
Speed of horizontal Movement	2.4 mm/s- 100 mm/s,±10%
Time of vertical Movement	25s
Foot pedal of patient table control	Provided
System Performance
Console computer	Support configurable plan
Monitor	Support configurable plan
Operating system	Windows11
DICOM Conformance Standards	DICOM 3.0
Image burner	DVD
DICOM 3.0 interface	Support HIS and PACS
Scan&Recon
Scout mode	PAT, LAT, DUAL
Maximum scout length	1500mm
Maximum scan time of helical	100s
Maximum scan length of helical	1500mm
Range of pitch	0.25-1.75(continuous parameter)
Image reconstruction matrix	512x512, 1024x1024
Speed of image reconstruction	MAX 16 Image/second
Image noise	≤0.35%@Center dose ≤40mGy
CT uniformity	±4HU
CT accuracy	Air:-1000±10HU;water:0±4HU
Low contrast resolution	4.0mm @0.3%
