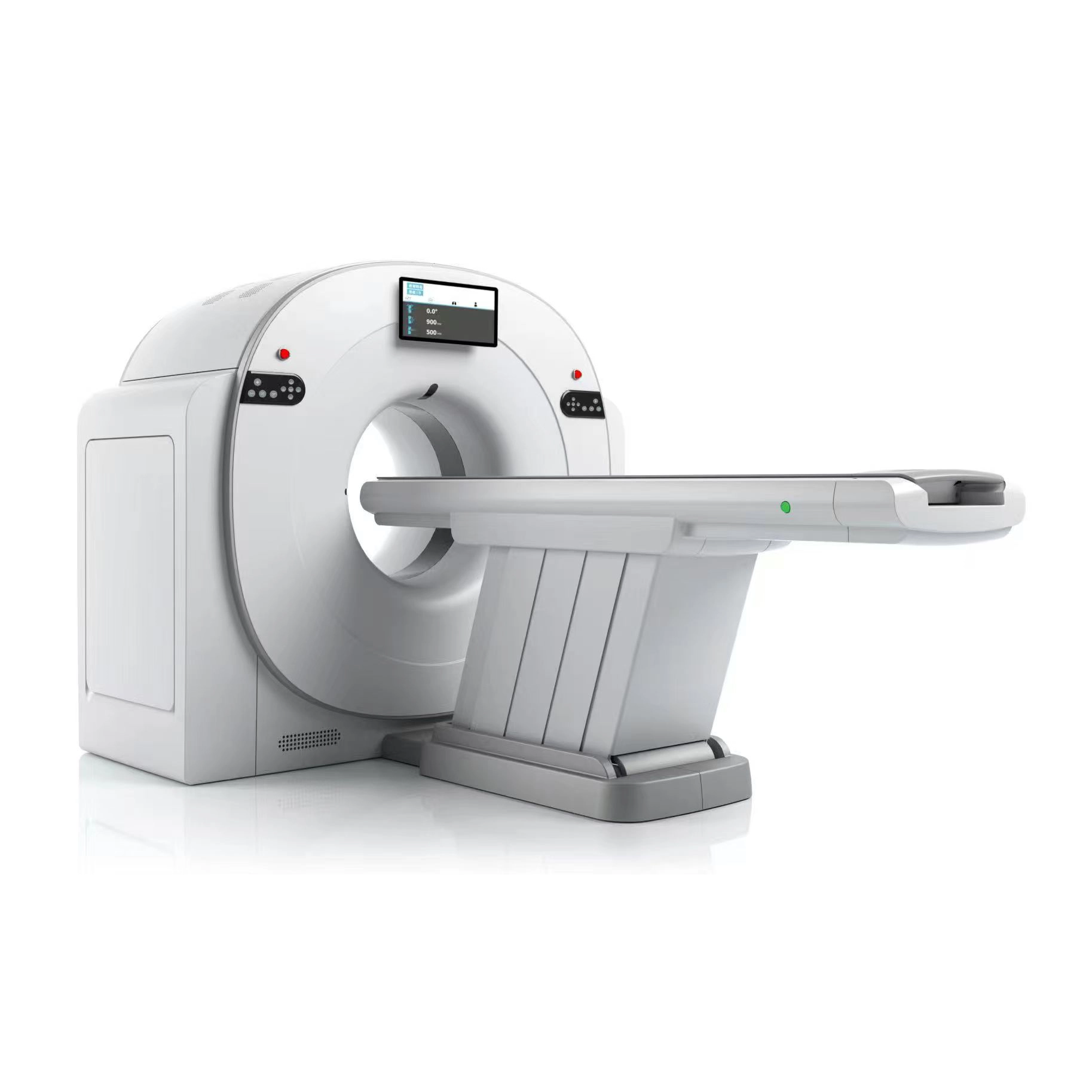

64-Slice Low-Dose CT Scanner for High-Resolution Imaging
5.0
Brand Name:
INNORKOM
Model Number:
INK-50-64-CT-OCE
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-3(sets):15(days),>3(sets):To be negotiated(days)
Shipping:
Support Sea freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Warranty
1 Year
Power Source
Electric
Instrument classification
Class II
After-sale Service
Online Technical Support
DICOM Conformance Standards
DICOM 3.0
Tube anode heat capacity
5.OMHU
Orientation system
3D laser orientation
Gantry type
Low voltage
Maximum continuous scan duration
≥100sec
Tube mA range
10~416mA
Continuous output of HV generator
50kW
Heat dissipation rate
10.2kW
Shortest rotation time
0.5s/360°
Product name
64 Slice CT System
Place of Origin
Guangdong, China
Quick Detail
INNORKOM has audacious and unique design style. Reliable testing instruments are applied to test the product to ensure it is of the reliable quality and can perform well. INNORKOM's can be applied to different fields. Guangzhou INNORKOM Medical Limited has established and improved a quality assurance system that places the product's performance indicators at the forefront of the industry.
Product Photo
Product Description
Specification
Gantry | ||
Aperture | 700mm土10mm | |
Scan FOV | 500mm | |
Field of View Extension | 700mm | |
Mechanical tilt capability | Digital Tilt±30° | |
SDD | 1021±2mm | |
SID | 570±2mm | |
Rotation mode | Clockwise | |
Gantry type | Low voltage | |
Shortest rotation time | 0.5s/360° | |
Orientation system | 3D laser orientation | |
Tube | ||
Tube anode heat capacity | 5.0MHU | |
Continuous anode input power | 30 kW@SFS/50 kW@LFS | |
Heat dissipation rate | 10.2kW | |
Tube focus | Small focus 0.9mm*0.7mm Large focus 1.4mm*1.4mm | |
High voltage generator | ||
Continuous output of HV generator | 50kW | |
Tube kV selections | 70kV、80kV、100kV、120kV、140kV | |
Tube mA range | 10~416mA | |
Maximum continuous scan duration | ≥100sec | |
Detector | ||
Detector type | Solid-state GOS ceramic | |
Width of Z-axle detector | 20mm@IS0 center | |
Detector columns of channels per row | 864 | |
Numbers of detector columns | 27648 | |
Minimum slice thickness of scan | 0.625mm | |
Acquisition mode | 32x0.625 | |
Table | ||
Maximum patient weight | 200kg | |
Maximum vertical-movable range | 400mm | |
Maximum horizontal-movable range | 0-1600mm | |
Table horizontal-position repeatability | 0.25mm | |
Table horizontal-scannable range | 1500mm | |
Couch width | ≥420mm | |
Repeat positioning accuracy | ≤1 mm | |
Speed of horizontal Movement | 1 mm/s - 100 mm/s,±10% | |
Time of vertical Movement | 25s | |
Foot pedal of patient table control | Provided | |
System Performance | ||
Console computer | Support configurable plan | |
Monitor | Support configurable plan | |
Operating system | Windows11 | |
DICOM Conformance Standards | DICOM 3.0 | |
Image burner | DVD | |
DICOM 3.0 interface | Support RIS and PACS | |
Scan&Recon | ||
Scout mode | Real-time location image | |
Maximum scout length | 1500mm | |
Maximum scan time of helical | 100s | |
Maximum scan length of helical | 1500mm | |
Range of pitch | 0.25-1.75 (continuous parameter) | |
Scan FOV | 500mm | |
Image reconstruction matrix | 512x512,1024x1024 | |
Speed of image reconstruction | MAX 20 Image/second | |
Image noise | ≤0.35%@ Center dose ≤40mGy | |
CT uniformity | ±4HU | |
CT accuracy | Air:一1000±10HU;water:0±4HU | |
Low contrast resolution | 3.0mm @0.3% | |
