Trolley Portable Ultrasound Bone Densitometer X-ray Absorptiometry | INNORKOM
The Trolley Portable Ultrasound Bone Densitometer with X-ray Absorptiometry (Hologic) and Calcaneus Inner Measurement is a cutting-edge, mobile bone density assessment system designed to deliver accurate, real-time bone mineral density (BMD) readings. This system utilizes Hologic’s DXA (Dual-Energy X-ray Absorptiometry) technology to provide reliable measurements of bone strength and density for assessing conditions like osteoporosis and evaluating fracture risk.
Technical features
1. Using the full dry technology, makes diagnostic more convenient.
2. The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
3. the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
4. use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
5. With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
6. With a special correction system, to correct the system error effectively, get more accurate measurement results.
7. multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
8. it with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 120.

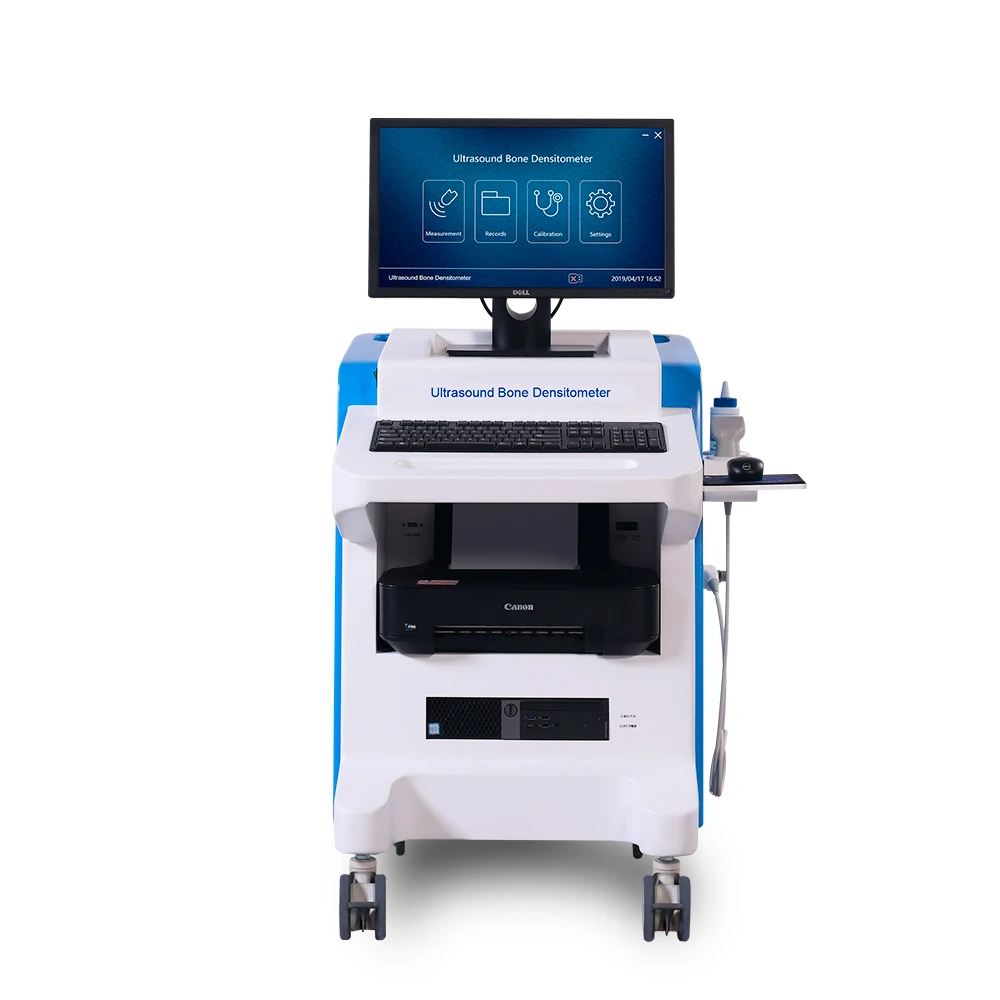

Product Display
Product Detail
1. Measurement parts: 1/3 of radius and middle of the Tibia
2. Measurement mode: double emission and double receiving
3. Measurement parameters: Speed of sound (SOS)
4. Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). BMI
5. Measurement Accuracy : ≤0.1%
6. Measurement Reproducibility: ≤0.1%
7. Measurement time: adult <15 Seconds, Children <3 Seconds,
8. Probe frequency : 1.20MHz, United States DuPont technology.
9. Automatic determination of measurement results
10. The text template has an automatic addressing function, which is convenient for report editing
Performance parameter
11. It has a report statistics function
12. It has a medical record name correction function
13. It has an ID card reading function
14. It has HIS and DICOM data interface functions
15. It has a one-button Chinese-English conversion function
16. It has a fast and slow speed detection function
17. Date analysis : BMD-A7 special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
18. Temperature control: Perspex sample with temperature instructions
19. Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
Application Scenario
