Professional One-Stop Medical Equipment Factory & Supplier (To More Than 156 Countries).

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 1

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 2

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 3

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 4

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 5

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 6

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 7

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 8

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM

Overall Dimension 50*30*60CM(L*W*H)
Gas pressure: 0.25~0.65Mpa
APL valve: 0.5~6.0Kpa
Rapid oxygen supply 35 L/min ~ 75 L/min
CO2 Canister 1000mL
The Pressure Gauges Two for O2,One for Airway pressure
Three gauges: Two for O₂,one for airway pressure

Brand Name:

INNORKOM

Model Number:

INC-A104

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):7(days),2-2(sets):15(days),>2(sets):To be negotiated(days)

shipping:

Support Sea freight

Inquiry

Write a Review

Warranty

1 Year

Power Source

Electricity

Application

1~100KG Patients

Instrument classification

Class III

Quality Certification

Shelf Life

1years

After-sale Service

Online technical support

Tidal volume (Vt)

0 mL ~ 1500 mL

Rapid oxygen supply

35 L/min ~ 75 L/min

Flow Meters

O2 Two Tubes(0~10L/Min)

Overall Dimension

50*30*60CM(L*W*H)

Certificate

CE ISO 13485

Vaporizer Quantit

Isofurane,Sevofurane,Halothane(Optional One Of Three)

Apply For

Children Adults(1-100kg)

Working Mode

Closed,Semi-Closed,Semi-Open System

Ventilation Mode

Manual

Vaporizer

Volume: 250mL

Type

Portable Anaesthesia Machine

Place of Origin

Guangdong, China

Portable single Tank Anesthesia Machine For Human and veterinary

Experience top-notch anesthesia administration with our high-end portable anesthesia machine, suitable for both veterinary and human use. This medical equipment unit comes with a sleek, modern design for easy operation and transport. Ensure the safety and comfort of your patients with this quality anesthesia machine.

● High-quality Anesthesia Delivery

● Easy to operate,only manual breathing mode

● Single or multiple carbon dioxide canister, for the long time surgery

● Three oxygen guage for monitor the parameter

● With Carbon dioxide canister

● Optional trolley and Ventilator

Product Display

产品主图1 (8)

产品主图2 (9)

产品主图6 (8)

Efficient, Portable, Versatile Anesthesia Machine

Portable Single Tank Anesthesia Machine for Human and Veterinary Operating Rooms | INNORKOM 14

Versatile

This high-end portable anesthesia machine caters to both veterinary and human use, offering an adaptable solution for medical professionals.

Accurate

With its state-of-the-art vaporizer, this machine guarantees precise and reliable administration of anesthesia, ensuring optimal patient care.

Compact

Designed for convenience, this anesthesia machine features a compact design that facilitates easy transportation and storage in various medical settings.

User-friendly

Equipped with an intuitive interface, this machine offers a user-friendly experience, simplifying operation and enhancing efficiency for healthcare professionals.

Factory Pictures

工厂图3(1) (2)

工厂图2(1) (2)

工厂图1(1) (2)

产品细节3(1)

Main Features

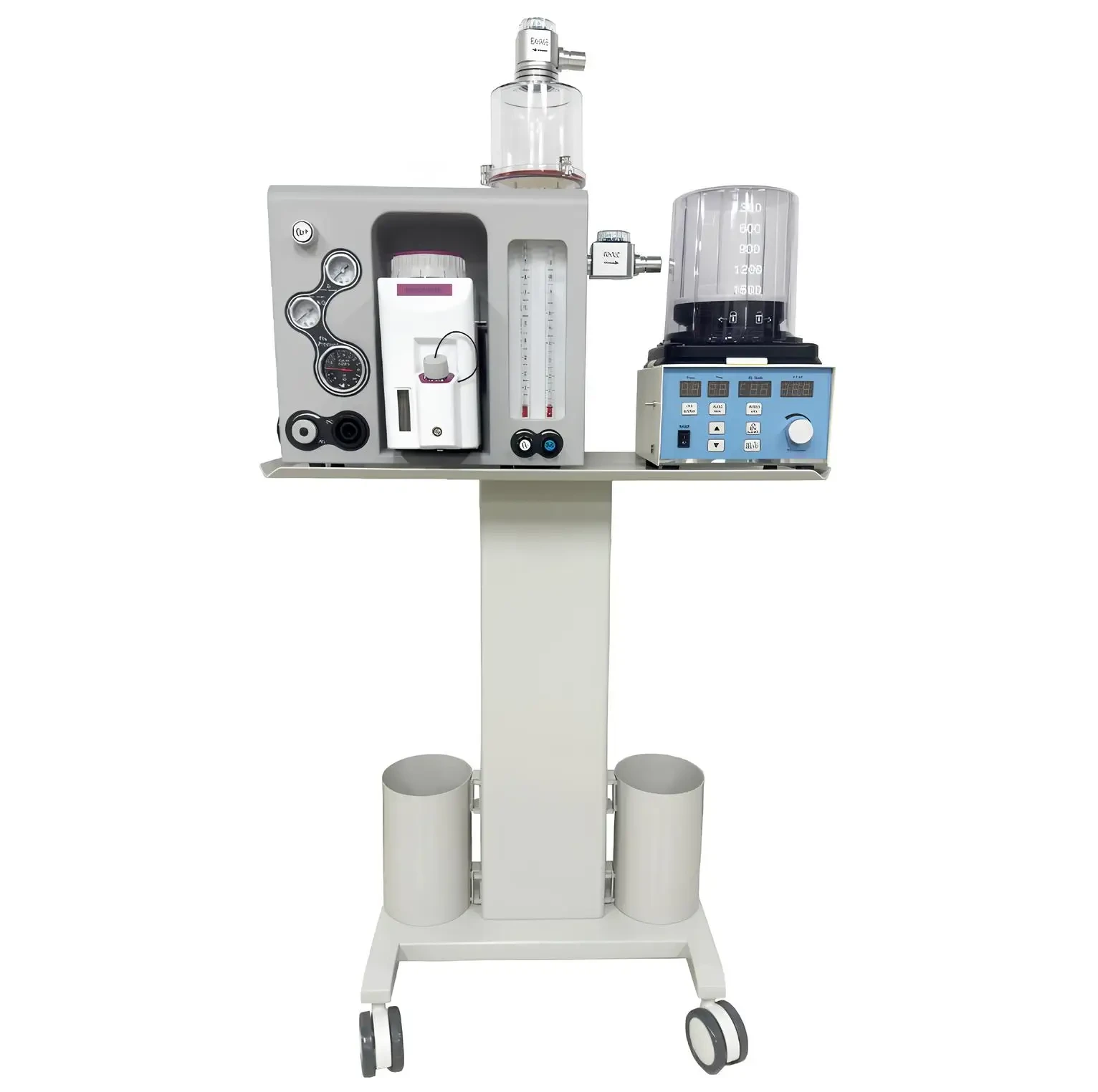

This compact and beautifully designed anesthesia machine features a mobile handle for easy transport, saving space in operating rooms or laboratories and enabling outdoor use. The clear and easy-to-assemble carbon dioxide absorber simplifies soda lime replacement. Equipped with three pressure gas meters and two oxygen flowmeters, it ensures precise control and safety during operations. The oxygen quick supply button meets clinical requirements, while three vaporizer options—Sevoflurane, Isoflurane, and Halothane—offer versatility for different needs. Suitable for low-flow anesthesia, it ensures rapid recovery for anesthetized animals.

◎ Three pressure gas meter

◎ Three type vaporizer

◎ Two oxygen flowmeter

FAQ

Can this anesthesia machine be used for veterinary as well as human patients?

Yes, this high-end portable anesthesia machine is designed for use on both veterinary and human patients.

Is the anesthesia machine equipped with a vaporizer?

No, this vaporizer is the optional accessory.

How portable is this anesthesia machine?

This anesthesia machine is designed to be highly portable, making it easy to transport between different locations.

What are the application scenarios for this anesthesia machine?

This anesthesia machine can be used in a variety of settings, including veterinary clinics, hospitals, and emergency medical facilities.

Is this anesthesia machine easy to operate?

Yes, this anesthesia machine is user-friendly and easy to operate, making it suitable for use by medical professionals with varying levels of experience.

Can this anesthesia machine be used for both inhalation and intravenous anesthesia?

Yes, this versatile anesthesia machine can be used for both inhalation and intravenous anesthesia, providing flexibility in treatment options for patients.
